Launch X-PROG3 Backup and Restore MED17 EEPROM Flash

 Launch X431 X-PROG3 released mega-update in IMMO Program V10.06- adding Siemens engine ecu support in the new version.



Here is a demo guide on reading, writing, backup and restoring bosch and siemens engine ecu eeprom/flash data by Launch X431 Pad (Immo Pro Pad, PAD V, PAD VII, Trottle PAD etc) and X-PROG3 (GIII).

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 1

Engine ECU example: Bosch VW MED17.5.25

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 2

Run Diagnostic App enter Immo Prog module

Connect the dongle x-prog 3 obd port or power supply as the diagram and click ok

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 3

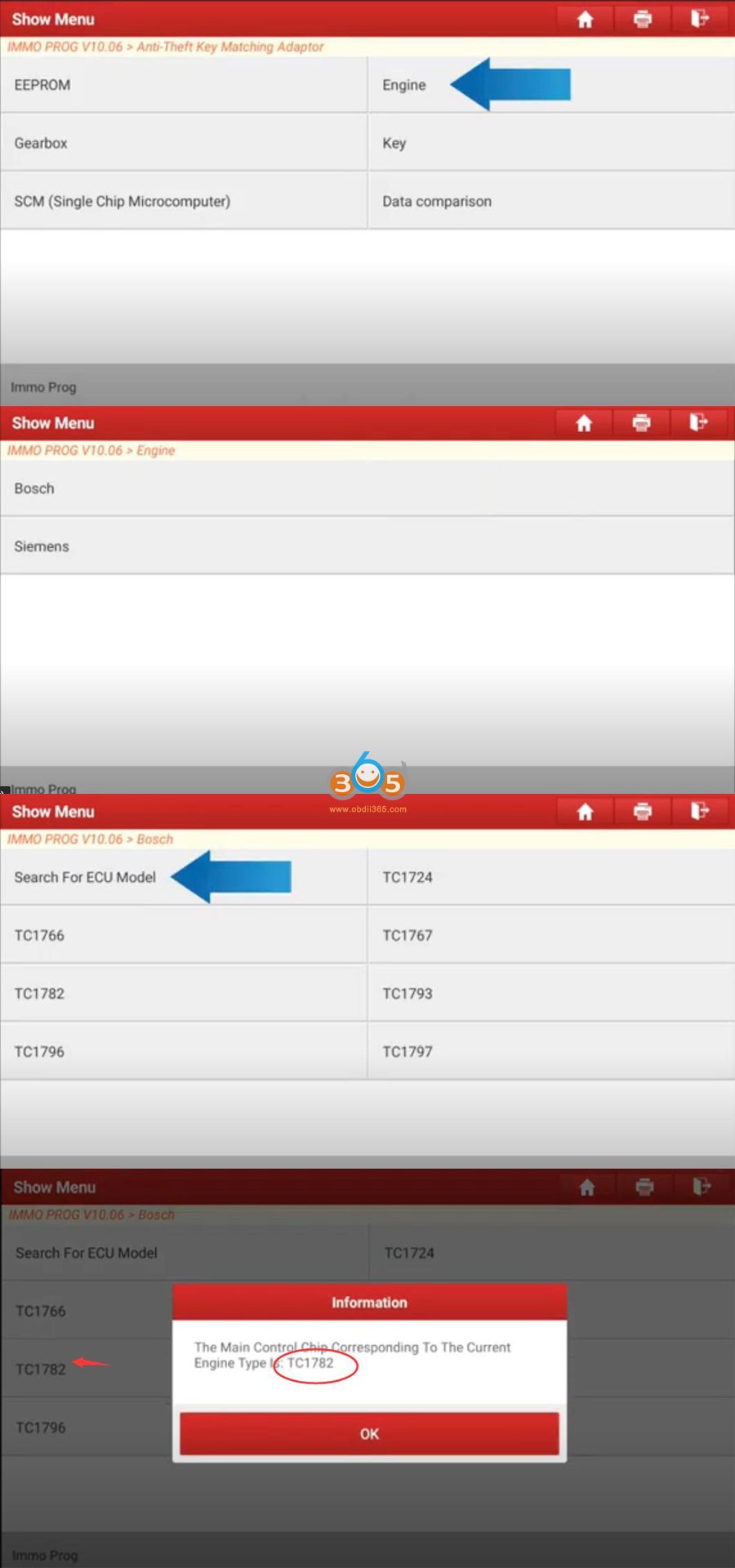

Select Engine- Bosch- Search for ECU model-TC1782

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 4

Read the info carefully we can see we’d better use usb communication mode because an unstable signal could cause ecu damage.

ECU may be damaged due to erratic reading and writing data of Bluetooth or WiFi on bench mode. Do use USB to connect the tablet and connector.

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 5

Exit and go to Home menu, enter Setting- USB management, enable USB option

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 6

then connect device with x-prog3 by usb cable

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 7

Select ECU TC1782 and View wiring diagram

Connect ECU with X-PROG3 via bench cables

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 8

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 9

Read chip ID

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 10

Chip id reads succeed meaning well communication is built then we can start backup or restore ecu data

Backup EEPROM data

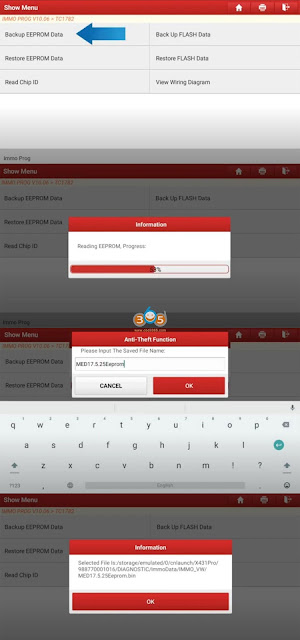

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 11

Backup Flash data

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 12

Restore EEPROM Data

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 13

Restore FLASH data

Launch X-PROG3 Backup and Restore MED17 EEPROM Flash 14

Please don’t charge the tablet when we are back up or restoring the data, and ensure the battery is not too low.
