How to Make Porsche Coding Changes with Launch CRP919X CRP919E

 Instructions on Make Porsche Coding Changes using a Launch CRP919X, CRP919E, CRP919X BT, CRP919E BT scanners.


Plugin X431 into OBD 2 Port, Turn Key to Accessory Mode and Wait until VIN is Determined
then Hit the Back Arrow in the Upper Left Until You Get to the Next Screen Shown Below

Make Porsche Coding Changes with Launch CRP919X 1

Then select Diagnose (Although you may want to update the unit if updates are available)

Make Porsche Coding Changes with Launch CRP919X 2

Then Scroll Down and select Porsche

Make Porsche Coding Changes with Launch CRP919X 3

Then Select OK

Make Porsche Coding Changes with Launch CRP919X 4

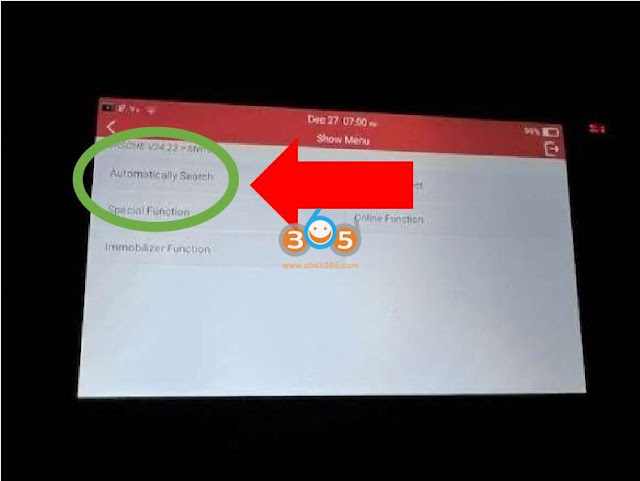

Then Select Automatically Search

Make Porsche Coding Changes with Launch CRP919X 5

The Unit should determine the type of 718 you have and then Select OK

Make Porsche Coding Changes with Launch CRP919X 6

Then Select System Selection

Make Porsche Coding Changes with Launch CRP919X 7

Then Select the appropriate System for the Code you want to adjust (Note: This is the
system listed in the instructions below such as Front-end Electronics, Rear-End Electronics,
Instrument Cluster or Air Conditioning)

Make Porsche Coding Changes with Launch CRP919X 8

Then select Code/Brush Hiding

Make Porsche Coding Changes with Launch CRP919X 9

Then select Brush Hidden/Modified

Make Porsche Coding Changes with Launch CRP919X 10

Then find the Code you want to adjust (These are the Codes in the instructions below)
Then Make the Change
Then Hit the Write Code Button
