Will Diagzone work with Launch X431 Key Programmer?

Question:

Will Prodiag Xdiag or Diagzone work with Launch X431 Key Programmer?

Diagzone work with Launch X431 Key Programmer 1

The key programmer is quite useful because you don’t need to buy extra programmer to read the frequency of the key. It comes with 4 keys.

Here is an experimental one where we tried to see if this programmer can work with this software.



Here we use the Prodiag version with DBScar 7 Bluetooth connector, the Diagzone should be also similar. Prodiag and Diagzone they are have small differences.

Diagzone work with Launch X431 Key Programmer 2

Connect the key programmer via USB.

Connect the antenna on the programmer.

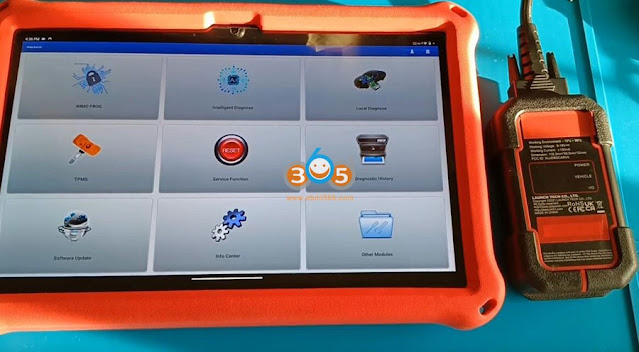

Go to IMMO Function. Check Toolbox and you have the Key programmer.

Diagzone work with Launch X431 Key Programmer 3

Diagzone work with Launch X431 Key Programmer 4

You will have it on the Toolbox.

You will connect first time with this antenna will make a update on the program.

You will see it will modify firmware version.



You have the possibility to make the update first when you have this programmer you should go on the update.

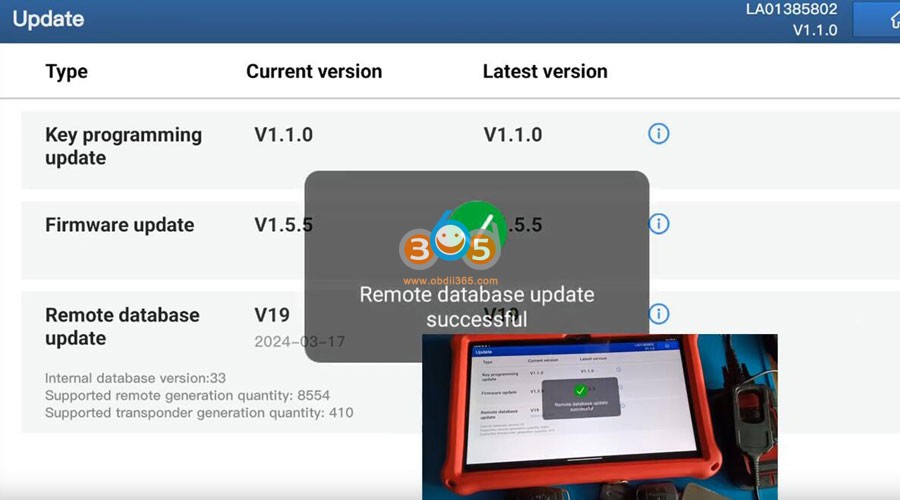

This is most important. We do have the remote database update. The update is finished.

Diagzone work with Launch X431 Key Programmer 5

Diagzone work with Launch X431 Key Programmer 6

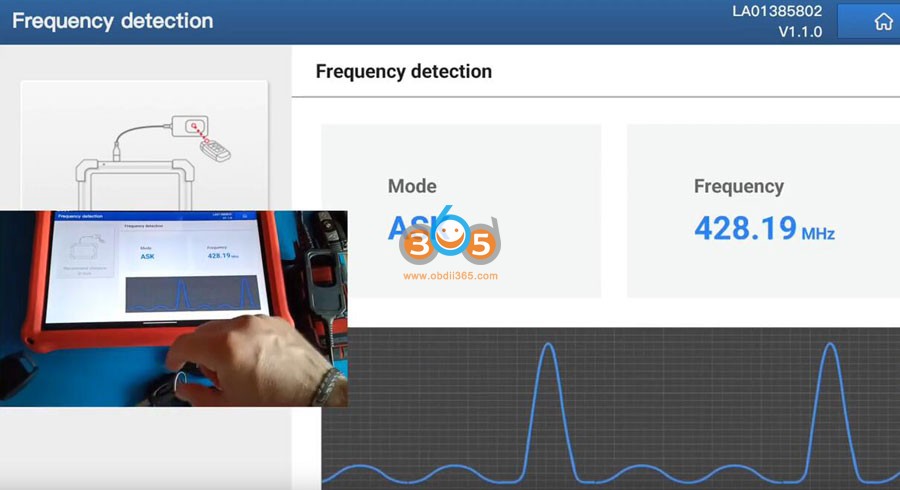

Try to read key frequency.

Diagzone work with Launch X431 Key Programmer 7

Read remote information

Diagzone work with Launch X431 Key Programmer 8

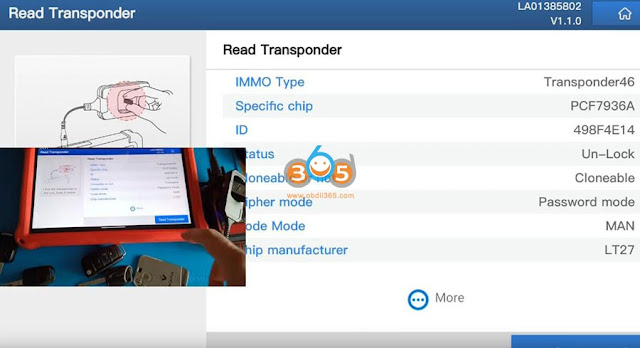

Read another key.

Diagzone work with Launch X431 Key Programmer 9

If you buy the Launch X431 key programmer and keys separately, you will pay more than 100usd.  So we suggest you buy all this set oversall.

We are not so sure if this functionality works with Prodiag or diagZone.  We will suggest to buy and use original Launch x431 tools (IMMO Plus, IMMO Elite, IMMO Pad, IMMO Pro, X431 PAD VII, X431 PAD V).
