Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox

Launch X431 X-prog3 programmer is very good at ECU/TCU cloning. Here comes an example of Mercedes Benz VGS NAG3 gearbox cloning.





Device required:

Launch X431 X431 PAD VII/PAD V series or IMMO series tablet (IMMO PLUS/IMMO Elite/IMMO Pro)

Launch X-Prog3 programmer

Launch MCU3 adapter

Original VGS3 gearbox

New VGS3 gearbox need to replace



*To perform ECU/TCU cloning function with X-prog3 you should have X431 PAD or IMMO series tablets. X431 V/V+/Pros with X-prog3 won’t do ECU cloning.



Select IMMO Prog function

Connect X-PROG3 with IMMO Plus (connection instruction)

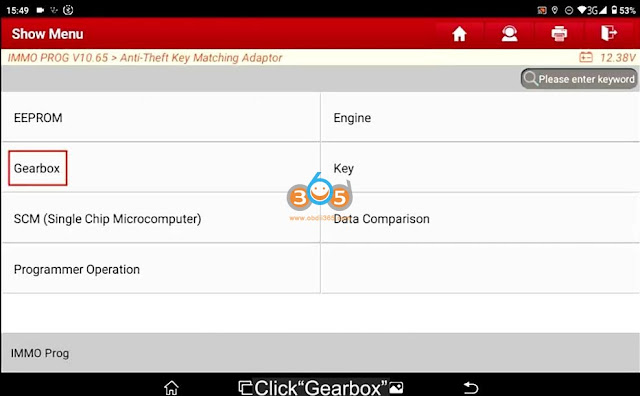

Select Gearbox->Benz->VGS-NAG3->View Wiring Diagram->Connect to MCU3 adapter plate

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 1

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 2

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 3

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 4

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 5

Connect VGS gearbox with X431 IMMO Plus tablet follow the wiring diagram

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 6

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 7

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 8
Connect Gearbox

Do a Backup full data

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 9

Read and save flash data

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 10

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 11

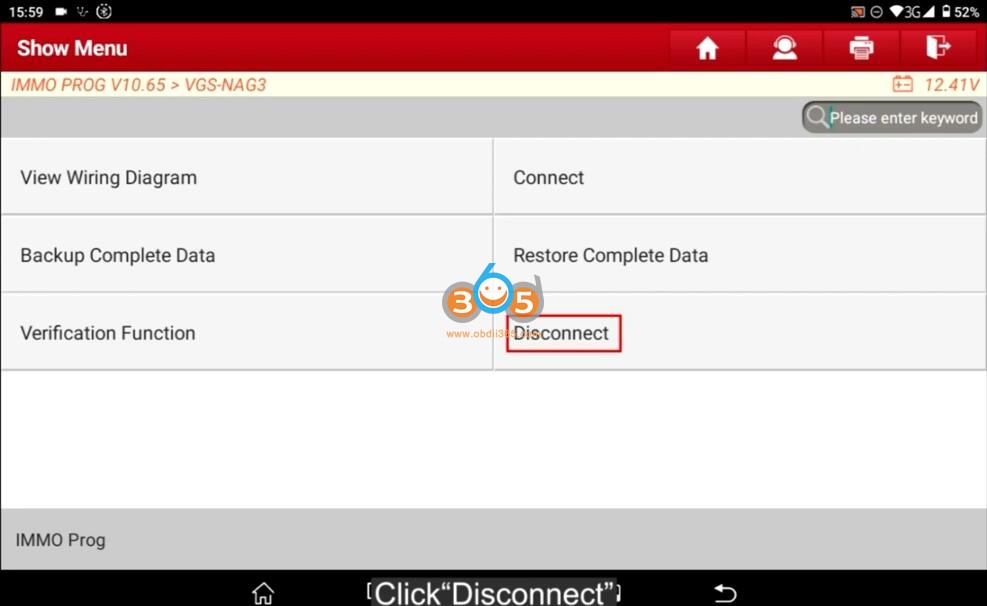

Disconnect old VGS NAG3 gearbox

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 12

Connect new VGS NAG3 gearbox need to be replaced

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 13

Backup full data of the new VGS NAG3

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 14

Select Restore complete data
Update original VGS data to restore

Make sure Bosch bumber of the new ECU is the same from that of the original ECU.

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 15

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 16

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 17

Write eeprom and flash to new VGS3

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 18

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 19

Then verify if the VIN code is the same.

Launch X-prog3 Clone Mercedes VAG NAG3 Gearbox 20
