Launch X431 IMMO Prog Coverage Supported by X-PROG3

 IMMO programming is one of the antitheft software that Launch X431 IMMO Pro, IMMO Pad and X431 Xprog 3 support. Today we will introduce you what we can do with IMMO program version 10.03.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 1



Let’s go!

Enter IMMO programV10.03.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 2



Please simultaneously connect the diagnostic connector and Anti-theft programmer.

Look at this image showing X431 GIII connected to IMMO Pad.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 3



Firstly, enter EEPROM, enter ATMEL and check we support this eeprom read and write. There are 16 brands EEPROM for chosen.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 4

Launch X431 IMMO Prog Coverage Supported by X-PROG3 5



Secondly, enter engine menu. There is 7 menu available, enter one of them.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 6



We can see that we support this engine ECU EEPROM and flash backup and restore, enter the wiring diagram, a very clear connecting guide.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 7



Enter “Gearbox”, we can see 10 kinds of gearbox ECU available.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 8

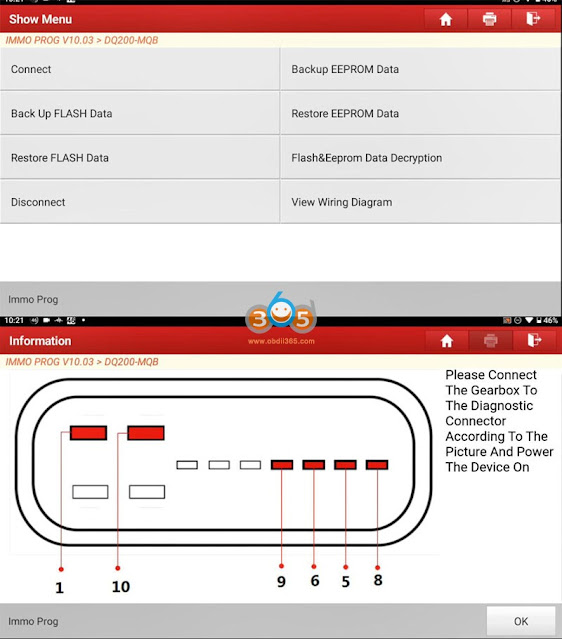

Enter the menu, we find flash and eeprom backup, restore and decryption.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 9



Enter “keys”, we can see the menu of key write and read, go further 7 kinds of key platform available, so we can support these platform key read and write.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 10



Enter last menu “SCM (Single Chip Microcomputer) and there are 4 chips available.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 12



There is very clear guide about how to connect to the chips.

Launch X431 IMMO Prog Coverage Supported by X-PROG3 13

Let’s do a summary:

1st function: support 16 brands EEPROM read & write including:

Atmel

Microchip

ST

Catalyst Fairchild ON Semi

OKI

Ramtron

Rohm

Phillips

Seiko

Xicor

AKM

EXEL

NSC

Holtek



2nd function:

Support 7 kinds of Bosch engine ECU flash, eeprom backup and restore including:

MED17.5.22 with chip TC1724

MED17.5 with chip TC1766

MED17.5.2 with chip TC1767

MED17.5.21 with chip TC1782

MED17.1.10 with chip TC1793

ME17.1 with chip TC1796

MED 17.1.1 with chip TC1797



3rd function: support 10 kinds of gearbox ECU falsh, EEPROM backup restore and decryption, including

DQ299-MQB

DQ250XX

DQ400E

DL501 Gen1

DL501 Gen2

VL381

DL382-7F

VGS2-FCVT

VSG-FDCT

VGS2-FDCT



4th function: support 7 kinds of keys read & write including:

Hitag 2

Hitag Pro

Megamos 8E

Megamos 48

Megamos AES

Infrared

5th generation keys.



5th function: support 4 kinds of chipset flash backup and restore including:

MC68HC908XX

XDP512

MC9S12XX_encryption

SC667095CA

Launch X431 IMMO Prog Coverage Supported by X-PROG3 14



More coverage will come in the new versions of Launch “IMMO PROG” Supported by IMMO Pro/Pad and X-PROG 3.
